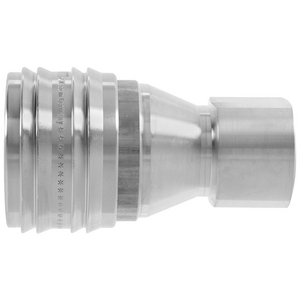

RECTUS TERUGSLAGKOPPELING RVS BI FKM 1/2 74KBIW21EVX

Parker's Quick Coupling Series 70 in sizes from 1/8" up to 1" with plug profile compliant with ISO 7241-1 series B. It's particularly suited to use with liquid media. The coupling system is developed for two-hand operation, i.e. both hands are required when coupling/uncoupling. The coupling series stands out for its high flow rates against a low pressure drop.

Markets:
- Machinery Construction
- Life Science
- Process
- Food & Beverage
- Defense
- Industrial
- Transportation

Features/Benefits:
- Coupling system according to ISO 7241-1 series B
- High flow rates against a low pressure drop
- Two-hand operation

Applications:
- Industrial hydraulic lines
- Food and chemical processing
- Water and coolant lines
- Cleaning equipment
- Steam and some gases

Toepassing: Vloeistofbehandeling, pneumatiek
Afmetingen behuizing: 1/2
Afmetingen aansluitschroefdraad: 1/2
Type aansluiting: Binnendraad - parallel
Divisie: Low Pressure Connectors Europe Division
Debiet: 1950
Zeskantmaat: 27
Lengte: 76
Materiaal: AISI 316 L
Maximale werkdruk: 250
Maximale bedrijfstemperatuur: 200
Minimale bedrijfstemperatuur: -15
Buitendiameter: 44,5
Afdichtingsmateriaal: FKM
Type: Koppeling
Inclusief klep: Ja
Versie: Dubbele afsluiting
