Kegellager Timken 755-90080, Buitendiameter: 161.925 mm | Binnendiameter: 76.2 mm | Breedte: 95.25 mm
Kegellager
Zie technische informatieReferenties
Timken:755-90080
Rubix:03324760
EAN:0053893822587
Technische samenvatting
| Binnendiameter | 76,2 mm |
|---|---|
| Buitendiameter | 161,925 mm |
| Breedte | 95,25 mm |

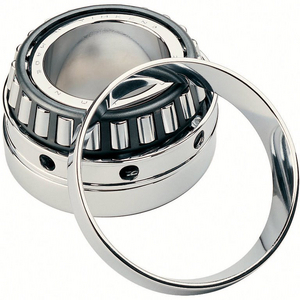

Productdetails : TIMKEN 755-90080 KEGELLAGER ASSY
2TS assemblies are comprised of two single-row bearings with an inner and outer ring spacer. In some applications, a shoulder in the bearing housing replaces the outer ring spacer.
Timken 755-90080 kegellager assy
Sterke punten
Steel spacers are used to create Bench End Play (BEP) or Preload (BPL) in the bearing assembly. Available with or without spacers. Spacers preset during manufacture.
Toepassingen
Gear reduction units; Industrial machines
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 95,25x161,925x161,925 mm |
| Logistiek gewicht | 9896 g |
| Afmeting verpakking (D x B x H) | 171,45x107,95x171,45 mm |
| Binnendiameter | 76,2 mm |
| Buitendiameter | 161,925 mm |
| Breedte | 95,25 mm |
| Type lagerspeling | cn |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 1.114,02 excl. BTW
/ stuk
€ 1.347,96 incl. BTW
- Levering doorgaans binnen 9 dagen
