Kegellager Timken 78551DF, Buitendiameter: 139.954 mm | Binnendiameter: 63.5 mm | Breedte: 51.803 mm
Kegellager
Zie technische informatieReferenties
Timken:78551DF
Rubix:03324883
EAN:0053893403540
Technische samenvatting
| Binnendiameter | 63,5 mm |
|---|---|
| Buitendiameter | 139,954 mm |
| Breedte | 51,803 mm |

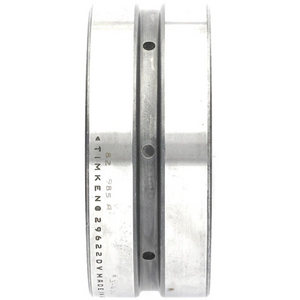

Productdetails : TIMKEN 78551 DF CUP
The configuration of the TDO provides a wide effective bearing spread, making it ideal for applications in which overturning moments are a significant load component. TDO bearings can be used in fixed positions or allowed to float in the housing bore.
Timken 78551DF lagercup uit de 78000-serie, met gaten in het OD-center. Bore 63,5 mm, OD 139,954 mm, breedte 51,803 mm.
Sterke punten
Double cup and two single cones, with or without a spacer. When spacers are used, bearing is furnished as a preset, matched assembly. Cup features groove and lubrication holes in the OD. Spacers available with or without lubricant grooves and holes.
Toepassingen
Heavy-duty gear drives; Various industrial configurations
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 51,816x139,954x139,954 mm |
| Logistiek gewicht | 1935 g |
| Afmeting verpakking (D x B x H) | 68,072x154,432x154,432 mm |
| Binnendiameter | 63,5 mm |
| Buitendiameter | 139,954 mm |
| Breedte | 51,803 mm |
| Type lagerspeling | cn |
| Gewicht | 2 kg |
| Serie | 78000 |
| Materiaal | staal |
| Koker | staal |
| Totale breedte lager | 77,785 mm |
| Aangepaste tariefcode | 84822000 |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 2.519,17 excl. BTW
/ stuk
€ 3.048,20 incl. BTW
- Levering doorgaans binnen 9 dagen
