Kegellager Timken HM88547/HM88510, Buitendiameter: 73.025 mm | Binnendiameter: 33.338 mm | Breedte: 29.37 mm
Kegellager
Zie technische informatieReferenties
Timken:HM88547/HM88510
Rubix:03321000
EAN:0053893041025
Technische samenvatting
| Binnendiameter | 33,338 mm |
|---|---|
| Buitendiameter | 73,025 mm |
| Breedte | 29,37 mm |

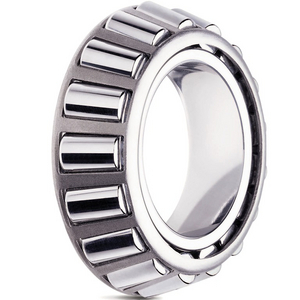

Productdetails : TIMKEN HM 88547/HM 88510 KEGELLAGER EENRIJIG
Single-row tapered roller bearings are the most basic and widely used, consisting of a cone assembly and a cup. Timken patented the first in 1898 and today offers the world's widest variety in inch and metric sizes. This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the inner race assembly and the outer race. It is typically mounted in opposing pairs on a shaft.
This cone will need to be purchased with a matching cup.
This cone will need to be purchased with a matching cup.
Timken kegellager eenrijig (TS) HM88547/HM88510 met boring 33,338 mm en OD 73,025 mm. Lagerbreedte 29,370 mm en C0r 111000 N.
Sterke punten
Single cone. One-piece pressed steel cage retains rollers on the cone and spaces them evenly. Pin type cages also available.
Toepassingen
Vehicle front wheels; Differential and pinion configurations; Conveyor rolls; Machine tool spindles; Trailer wheels
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 27,783x56,675x56,675 mm |
| Logistiek gewicht | 357 g |
| Afmeting verpakking (D x B x H) | 33,3756x85,8012x85,8012 mm |
| Binnendiameter | 33,338 mm |
| Buitendiameter | 73,025 mm |
| Breedte | 29,37 mm |
| Type lagerspeling | cn |
| Gewicht | 0,6 kg |
| Serie | hm88500 |
| Materiaal | gestempeld staal (kooi) |
| Koker | staal |
| Totale breedte lager | 29,37 mm |
| Norm | ABMA J-LINE |
| Statische basisbelasting, radiaal - C0r | 111000 N |
| Dynamische basisbelasting, radiaal - Cr | 103000 N |
| Aangepaste tariefcode | 84822000 |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 89,31 excl. BTW
/ stuk
€ 108,07 incl. BTW
- Levering doorgaans binnen 16 dagen
