Kegellager Timken HM926740V, Buitendiameter: 228.6 mm | Binnendiameter: 114.3 mm | Breedte: 49.428 mm
Kegellager
Zie technische informatieReferenties
Timken:HM926740V
Rubix:03327150
EAN:0053893711805
Technische samenvatting
| Binnendiameter | 114,3 mm |
|---|---|
| Buitendiameter | 228,6 mm |
| Breedte | 49,428 mm |

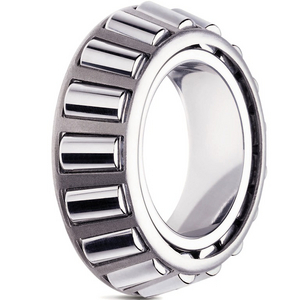

Productdetails : TIMKEN HM 926740 V CONE
At first glance, you may not be able to tell the difference between this tapered roller bearing and any other. Upon closer inspection, you’ll find Timken® fuel efficient bearings are lighter and thinner than their standard counterparts. From improved fuel economy to increased reliability, fuel efficient bearings offer exactly what you want to build a better axle system.
Timken kegelrol-lagerconus HM926740V (TS) voor single-cone toepassingen. Bore 114,3 mm, OD 228,6 mm; C0r 673000 N en Cr 152000 N.
Sterke punten
Advanced tapered design results in a 30 percent reduction in power consumption and up to a two percent gain in vehicle fuel economy. Power dense design reduces bearing weight by 10-15 percent. Controlled set-up torque helps you achieve more accurate settings, resulting in the highest axle performance possible.
Toepassingen
Light duty automotive axles
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 49,428x178,638x178,638 mm |
| Logistiek gewicht | 6842 g |
| Afmeting verpakking (D x B x H) | 60,452x228,6x228,6 mm |
| Binnendiameter | 114,3 mm |
| Buitendiameter | 228,6 mm |
| Breedte | 49,428 mm |
| Type lagerspeling | c1 |
| Gewicht | 9,5 kg |
| Serie | hm926700 |
| Materiaal | vacuumgesmolten staal |
| Koker | staal |
| Totale breedte lager | 53,975 mm |
| Norm | TS (TAPERED SINGLE) |
| Statische basisbelasting, radiaal - C0r | 673000 N |
| Dynamische basisbelasting, radiaal - Cr | 152000 N |
| Aangepaste tariefcode | 84822000 |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 4.925,50 excl. BTW
/ stuk
€ 5.959,85 incl. BTW
- Levering doorgaans binnen 9 dagen
