Kegellager Timken L225849-20395, Buitendiameter: 148.844 mm | Binnendiameter: 127 mm | Breedte: 26.195 mm
Kegellager
Zie technische informatieReferenties
Timken:L225849-20395
Rubix:03327779
EAN:0053893149752
Technische samenvatting
| Binnendiameter | 127 mm |
|---|---|
| Buitendiameter | 148,844 mm |
| Breedte | 26,195 mm |

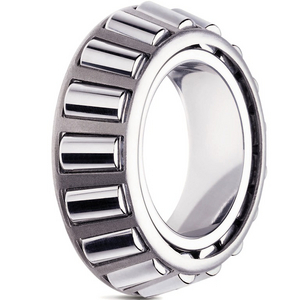

Productdetails : TIMKEN L 225849-20395 CONE
Using our specially toleranced bearings in conjunction with a precision OE-machined spacer allows you to achieve the proper wheel bearing end-play, eliminating the need for manual bearing adjustment. The repeatability of the bearing setting range provides for optimum seal and bearing life. This consistency could help reduce fleet fuel costs.
Timken kegelrollenlagerkegel L225849-20395 (single cone). Bore 127 mm, breedte 26.195 mm en 3.365 kg met C0r 273000 N en Cr 143000 N.
Sterke punten
Enable faster and more reliable wheelend builds; help improve up-time. Reduce inventory with lower component counts. Help optimize seal performance and life. Eliminate manual adjustment, one of the leading causes of wheel end issues
Toepassingen
Automotive Wheel Ends
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 26,162x148,844x148,844 mm |
| Logistiek gewicht | 1059 g |
| Afmeting verpakking (D x B x H) | 49,53x160,782x160,782 mm |
| Binnendiameter | 127 mm |
| Buitendiameter | 148,844 mm |
| Breedte | 26,195 mm |
| Type lagerspeling | cn |
| Gewicht | 3,365 kg |
| Serie | l225800 |
| Koker | staal |
| Statische basisbelasting, radiaal - C0r | 273000 N |
| Dynamische basisbelasting, radiaal - Cr | 143000 N |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 285,43 excl. BTW
/ stuk
€ 345,37 incl. BTW
- Levering doorgaans binnen 9 dagen
