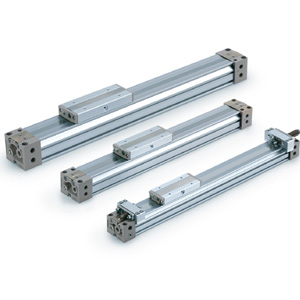

SMC SERIES MY1 MY1B32TFG-900Z
Zuigerstangloze Actuatoren MY1-Z
Zie technische informatieZie documentenReferenties
SMC:MY1B32TFG-900Z
Rubix:05299642
Fabrikant:MY1B32TFG-900Z
Technische samenvatting
| Type | mechanisch gekoppelde stangloze cilinder |
|---|---|
| Slag van de Cilinder | 900 mm |
| Diameter zuiger | 32 mm |
Documenten
Productdetails : SMC SERIES MY1 MY1B32TFG-900Z
Mechanisch Gekoppelde Zuigerstangloze Actuator, Zonder Slaginstelling
•w/o Stroke Adjustment Unit
•Easy adjustment of the cushion needle.
•Entrance of external particle is reduced, reliability improved and maintenance costs reduced.
•Piping flexibility because it can be connected in 4 directions and it can be selected from 2 types (standard and centralised).
•Flexibility in the auto switch mounting.
Bore Size: 32mm
Port Thread: TF (G)
Piping: G (Centralized Piping Type)
Stroke: 900
Stroke Adjustment Unit: Left
Right: w/o Unit
Auto Switch: No Switch
Lead Wire or Prewired Connector: 0.5m (Or None in the Case of No Switch)
Number: 2 pcs. (Or None in the Case of No Switch)
•Easy adjustment of the cushion needle.
•Entrance of external particle is reduced, reliability improved and maintenance costs reduced.
•Piping flexibility because it can be connected in 4 directions and it can be selected from 2 types (standard and centralised).
•Flexibility in the auto switch mounting.
Bore Size: 32mm
Port Thread: TF (G)
Piping: G (Centralized Piping Type)
Stroke: 900
Stroke Adjustment Unit: Left
Right: w/o Unit
Auto Switch: No Switch
Lead Wire or Prewired Connector: 0.5m (Or None in the Case of No Switch)
Number: 2 pcs. (Or None in the Case of No Switch)
Sterke punten
Mechanical joint rodless cylinder with slide bearing
Strokes up to 5000mm depending upon bore size
With one or two stroke adjusters with or without shocks
Variety of switches lead wire lengths
Strokes up to 5000mm depending upon bore size
With one or two stroke adjusters with or without shocks
Variety of switches lead wire lengths
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistiek gewicht | 5620 g |
| Type | mechanisch gekoppelde stangloze cilinder |
| Slag van de Cilinder | 900 mm |
| Diameter zuiger | 32 mm |
| Land van oorsprong | JP |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 464,86 excl. BTW
/ stuk
€ 562,48 incl. BTW
- Levering doorgaans binnen 9 dagen
