Kegellager Timken 6459, Buitendiameter: 149.225 mm | Binnendiameter: 70 mm | Breedte: 54.229 mm
Kegellager
Zie technische informatieReferenties
Timken:6459
Rubix:03324102
EAN:0053893147932
Technische samenvatting
| Binnendiameter | 70 mm |
|---|---|
| Buitendiameter | 149,225 mm |
| Breedte | 54,229 mm |

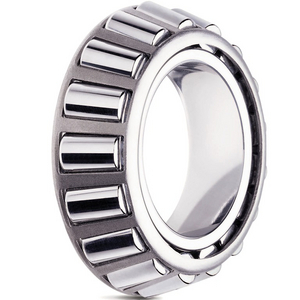

Productdetails : TIMKEN 6459 CONE
Single-row tapered roller bearings are the most basic and widely used, consisting of a cone assembly and a cup. Timken patented the first in 1898 and today offers the world's widest variety in inch and metric sizes. This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the inner race assembly and the outer race. It is typically mounted in opposing pairs on a shaft.
This cone will need to be purchased with a matching cup.
This cone will need to be purchased with a matching cup.
Timken kegelrollenlager (TS, tapered single) 6459/6420. Boring 70 mm, buitendiameter 149,225 mm en breedte 53,975 mm. C0=463000 N; C90=107000 N.
Sterke punten
Single cone. One-piece pressed steel cage retains rollers on the cone and spaces them evenly. Pin type cages also available.
Toepassingen
Vehicle front wheels; Differential and pinion configurations; Conveyor rolls; Machine tool spindles; Trailer wheels
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 54,356x110,49x110,49 mm |
| Logistiek gewicht | 3746 g |
| Afmeting verpakking (D x B x H) | 68,072x154,432x154,432 mm |
| Binnendiameter | 70 mm |
| Buitendiameter | 149,225 mm |
| Breedte | 54,229 mm |
| Type lagerspeling | cn |
| Gewicht | 4,6 kg |
| Serie | 6400 |
| Totale breedte lager | 53,975 mm |
| Statische basisbelasting, radiaal - C0r | 463000 N |
| Dynamische basisbelasting, radiaal - Cr | 107000 N |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 353,60 excl. BTW
/ stuk
€ 427,86 incl. BTW
- Levering doorgaans binnen 9 dagen
