Kegellager Timken 46150, Buitendiameter: 93.663 mm | Binnendiameter: 38.1 mm | Breedte: 31.75 mm
Kegellager
Zie technische informatieReferenties
Timken:46150
Rubix:03322909
EAN:0053893298276
Technische samenvatting
| Binnendiameter | 38,1 mm |
|---|---|
| Buitendiameter | 93,663 mm |
| Breedte | 31,75 mm |

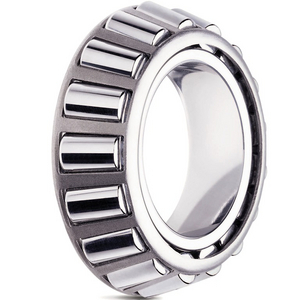

Productdetails : TIMKEN 46150 CONE
Single-row tapered roller bearings are the most basic and widely used, consisting of a cone assembly and a cup. Timken patented the first in 1898 and today offers the world's widest variety in inch and metric sizes. This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the inner race assembly and the outer race. It is typically mounted in opposing pairs on a shaft.
This cone will need to be purchased with a matching cup.
This cone will need to be purchased with a matching cup.
Timken 46150 kegelrollager-kegel (single cone) voor radiale/axiale belasting. Boring 38,1 mm en OD 93,663 mm; statisch C0r 158000 N.
Sterke punten
Single cone. One-piece pressed steel cage retains rollers on the cone and spaces them evenly. Pin type cages also available.
Toepassingen
Vehicle front wheels; Differential and pinion configurations; Conveyor rolls; Machine tool spindles; Trailer wheels
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 31,75x68,072x68,072 mm |
| Logistiek gewicht | 732 g |
| Afmeting verpakking (D x B x H) | 37,846x87,884x87,884 mm |
| Binnendiameter | 38,1 mm |
| Buitendiameter | 93,663 mm |
| Breedte | 31,75 mm |
| Type lagerspeling | cn |
| Gewicht | 1,1 kg |
| Serie | 46000 series |
| Totale breedte lager | 57,945 mm |
| Statische basisbelasting, radiaal - C0r | 158000 N |
| Dynamische basisbelasting, radiaal - Cr | 129000 N |
| Aangepaste tariefcode | 84822000 |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 414,60 excl. BTW
/ stuk
€ 501,67 incl. BTW
- Levering doorgaans binnen 9 dagen
