Kegellager Timken 472D-30000, Buitendiameter: 120 mm | Binnendiameter: 66.675 mm | Breedte: 53.975 mm
Kegellager
Zie technische informatieReferenties
Timken:472D-30000
Rubix:03322992
EAN:0053893038469
Technische samenvatting
| Binnendiameter | 66,675 mm |
|---|---|
| Buitendiameter | 120 mm |
| Breedte | 53,975 mm |

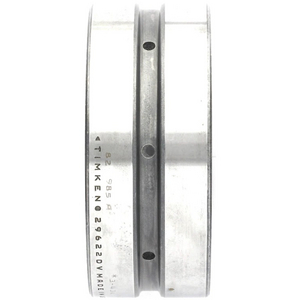

Productdetails : TIMKEN 472 D-30000 CUP
The configuration of the TDO provides a wide effective bearing spread, making it ideal for applications in which overturning moments are a significant load component. TDO bearings can be used in fixed positions or allowed to float in the housing bore.
Timken kegellagercup 472D-30000 (serie 475) voor tapered roller lager-settoepassingen. Dubbele cup met afmetingen 66,675 x 120 x 53,975 mm en gewicht 1,21 kg.
Sterke punten
Double cup and two single cones, with or without a spacer. When spacers are used, bearing is furnished as a preset, matched assembly. Cup features groove and lubrication holes in the OD. Spacers available with or without lubricant grooves and holes.
Toepassingen
Heavy-duty gear drives; Various industrial configurations
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 53,975x120x120 mm |
| Logistiek gewicht | 1003 g |
| Afmeting verpakking (D x B x H) | 62,0776x123,9012x123,9012 mm |
| Binnendiameter | 66,675 mm |
| Buitendiameter | 120 mm |
| Breedte | 53,975 mm |
| Type lagerspeling | cn |
| Gewicht | 1,21 kg |
| Serie | 475 |
| Koker | staal |
| Totale breedte lager | 65,09 mm |
| Dynamische basisbelasting, radiaal - Cr | 37200 N |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 644,56 excl. BTW
/ stuk
€ 779,92 incl. BTW
- Levering doorgaans binnen 9 dagen
