Kegellager Timken 93125B, Buitendiameter: 317.5 mm | Binnendiameter: 209.55 mm | Breedte: 46.038 mm
Kegellager
Zie technische informatieReferenties
Timken:93125B
Rubix:03325357
Fabrikant:100013642
EAN:0053893440026
Technische samenvatting
| Binnendiameter | 209,55 mm |
|---|---|
| Buitendiameter | 317,5 mm |
| Breedte | 46,038 mm |

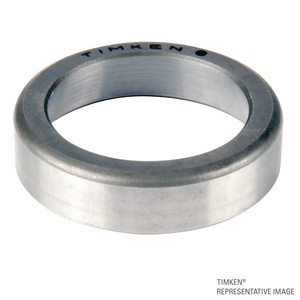

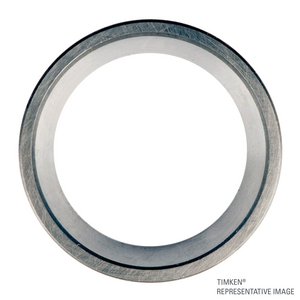

Productdetails : TIMKEN 93125 B CUP
Single-row tapered roller bearings are the most basic and widely used, consisting of a cone assembly and a cup. Timken patented the first in 1898 and today offers the world's widest variety in inch and metric sizes. This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the inner race assembly and the outer race. It is typically mounted in opposing pairs on a shaft.
This cup (outer ring) will need to be purchased with a matching cone (inner ring/cage/rollers).
This cup (outer ring) will need to be purchased with a matching cone (inner ring/cage/rollers).
Timken lagerbeker 93125-B (TSF) met flens voor axiale positionering. Voorzien van ID 209,55 mm, OD 317,5 mm en radiale belastingratings tot 1.290.000 N.
Sterke punten
Single cone. One-piece pressed steel cage retains rollers on the cone and spaces them evenly. Pin type cages also available.
Toepassingen
Vehicle front wheels; Differential and pinion configurations; Conveyor rolls; Machine tool spindles; Trailer wheels
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 46,038x328,524x328,524 mm |
| Logistiek gewicht | 6110 g |
| Afmeting verpakking (D x B x H) | 342,9x342,9x50,8 mm |
| Gewicht verpakking | 6109,9 g |
| Binnendiameter | 209,55 mm |
| Buitendiameter | 317,5 mm |
| Breedte | 46,038 mm |
| Type lagerspeling | cn |
| Gewicht | 17,2 kg |
| Serie | 93000 |
| Materiaal | staal (gestempelde kooi) |
| Koker | staal |
| Totale breedte lager | 63,5 mm |
| Statische basisbelasting, radiaal - C0r | 1290000 N |
| Dynamische basisbelasting, radiaal - Cr | 190000 N |
| Aangepaste tariefcode | 84822000 |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 4.700,38 excl. BTW
/ stuk
€ 5.687,46 incl. BTW
- Levering doorgaans binnen 9 dagen
