Kegellager Timken 95491-90141, Buitendiameter: 234.95 mm | Binnendiameter: 124.943 mm | Breedte: 142.875 mm
Kegellager
Zie technische informatieReferenties
Timken:95491-90141
Rubix:03325609
EAN:0053893450247
Technische samenvatting
| Binnendiameter | 124,943 mm |
|---|---|
| Buitendiameter | 234,95 mm |
| Breedte | 142,875 mm |

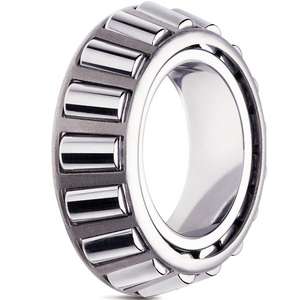

Productdetails : TIMKEN 95491-90141 KEGELLAGER ASSY
Single-row tapered roller bearings are the most basic and widely used, consisting of a cone assembly and a cup. Timken patented the first in 1898 and today offers the world's widest variety in inch and metric sizes. This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the inner race assembly and the outer race. It is typically mounted in opposing pairs on a shaft.
This cone will need to be purchased with a matching cup.
This cone will need to be purchased with a matching cup.
Timken 95491-90141 kegellager assy
Sterke punten
Single cone. One-piece pressed steel cage retains rollers on the cone and spaces them evenly. Pin type cages also available.
Toepassingen
Vehicle front wheels; Differential and pinion configurations; Conveyor rolls; Machine tool spindles; Trailer wheels
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 63,5x178,054x178,054 mm |
| Logistiek gewicht | 7440 g |
| Afmeting verpakking (D x B x H) | 77,724x234,95x234,95 mm |
| Binnendiameter | 124,943 mm |
| Buitendiameter | 234,95 mm |
| Breedte | 142,875 mm |
| Type lagerspeling | cn |
| Gewicht | 25,732 kg |
| Serie | tdo |
| Statische basisbelasting, radiaal - C0r | 284000 N |
| Dynamische basisbelasting, radiaal - Cr | 1090000 N |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 5.315,39 excl. BTW
/ stuk
€ 6.431,62 incl. BTW
- Levering doorgaans binnen 9 dagen
