Kegellager Timken HM120846-90118, Buitendiameter: 165.1 mm | Binnendiameter: 99.957 mm | Breedte: 106.581 mm
Kegellager
Zie technische informatieReferenties
Timken:HM120846-90118
Rubix:03326632
EAN:0053893477503
Technische samenvatting
| Binnendiameter | 99,957 mm |
|---|---|
| Buitendiameter | 165,1 mm |
| Breedte | 106,581 mm |

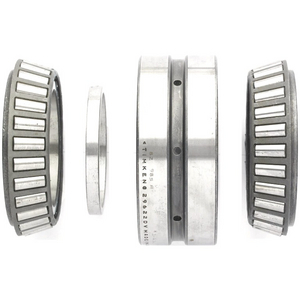

Productdetails : TIMKEN HM 120846-90118 KEGELLAGER ASSY
The configuration of the TDO provides a wide effective bearing spread, making it ideal for applications in which overturning moments are a significant load component. TDO bearings can be used in fixed positions or allowed to float in the housing bore.
Timken HM120846-90118 is een TDO dubbelrij kegellagerass'y met boring 99.957 mm en buitendiameter 165.1 mm. Voorzien van dynamische radiale basisbelasting C1 = 470000 N.
Sterke punten
Double cup and two single cones, with or without a spacer. When spacers are used, bearing is furnished as a preset, matched assembly. Cup features groove and lubrication holes in the OD. Spacers available with or without lubricant grooves and holes.
Toepassingen
Heavy-duty gear drives; Various industrial configurations
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 106,36x165,1x165,1 mm |
| Logistiek gewicht | 10040 g |
| Afmeting verpakking (D x B x H) | 177,8x292,1x177,8 mm |
| Binnendiameter | 99,957 mm |
| Buitendiameter | 165,1 mm |
| Breedte | 106,581 mm |
| Type lagerspeling | cn |
| Gewicht | 8,682 kg |
| Serie | hm120800 |
| Totale breedte lager | 114,3 mm |
| Dynamische basisbelasting, radiaal - Cr | 470000 N |
| Aangepaste tariefcode | 84822000 |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 3.064,39 excl. BTW
/ stuk
€ 3.707,91 incl. BTW
- Levering doorgaans binnen 9 dagen
