Kegellager Timken HM212047-902A2, Buitendiameter: 122.238 mm | Binnendiameter: 63.5 mm | Breedte: 76.2 mm
Kegellager
Zie technische informatieReferenties
Timken:HM212047-902A2
Rubix:03326760
EAN:0053893799995
Technische samenvatting
| Binnendiameter | 63,5 mm |
|---|---|
| Buitendiameter | 122,238 mm |
| Breedte | 76,2 mm |

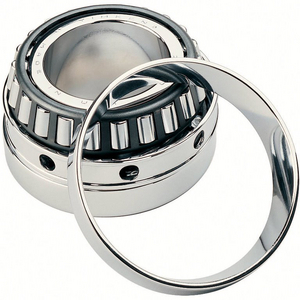

Productdetails : TIMKEN HM 212047-902A2 KEGELLAGER ASSY
2TS assemblies are comprised of two single-row bearings with an inner and outer ring spacer. In some applications, a shoulder in the bearing housing replaces the outer ring spacer.
Timken hm 212047-902a2 kegellager assy
Sterke punten
Steel spacers are used to create Bench End Play (BEP) or Preload (BPL) in the bearing assembly. Available with or without spacers. Spacers preset during manufacture.
Toepassingen
Gear reduction units; Industrial machines
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 76,2x122,174x122,174 mm |
| Logistiek gewicht | 4055 g |
| Binnendiameter | 63,5 mm |
| Buitendiameter | 122,238 mm |
| Breedte | 76,2 mm |
| Type lagerspeling | cn |
| Gewicht | 14,51 kg |
| Serie | 2ts-dm |
| Totale breedte lager | 76,708 mm |
| Dynamische basisbelasting, radiaal - Cr | 121000 N |
| 127 mm | |
| 127 mm |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 389,96 excl. BTW
/ stuk
€ 471,85 incl. BTW
- Levering doorgaans binnen 9 dagen
