Kegellager Timken 13890-90021, Buitendiameter: 63.5 mm | Binnendiameter: 38.481 mm | Breedte: 38.1 mm
Kegellager
Zie technische informatieReferenties
Timken:13890-90021
Rubix:03320231
EAN:0053893180359
Technische samenvatting
| Binnendiameter | 38,481 mm |
|---|---|
| Buitendiameter | 63,5 mm |
| Breedte | 38,1 mm |
Productdetails : TIMKEN 13890-90021 KEGELLAGER ASSY
The configuration of the TDO provides a wide effective bearing spread, making it ideal for applications in which overturning moments are a significant load component. TDO bearings can be used in fixed positions or allowed to float in the housing bore.
Timken 13890-90021 kegellagerassy (serie 13800) met boring 38,481 mm, OD 63,5 mm en breedte 38,1 mm. Cr = 12300 N.
Sterke punten

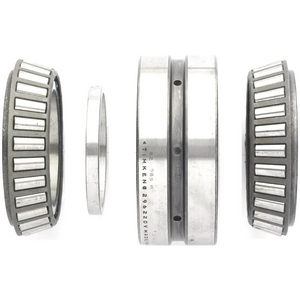

Double cup and two single cones, with or without a spacer. When spacers are used, bearing is furnished as a preset, matched assembly. Cup features groove and lubrication holes in the OD. Spacers available with or without lubricant grooves and holes.
Toepassingen
Heavy-duty gear drives; Various industrial configurations
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 38,1x63,5x63,5 mm |
| Logistiek gewicht | 414 g |
| Afmeting verpakking (D x B x H) | 44,45x66,802x66,802 mm |
| Binnendiameter | 38,481 mm |
| Buitendiameter | 63,5 mm |
| Breedte | 38,1 mm |
| Type lagerspeling | cn |
| Gewicht | 0,375 kg |
| Serie | 13800 |
| Materiaal | staal |
| Koker | staal |
| Totale breedte lager | 38,1 mm |
| Dynamische basisbelasting, radiaal - Cr | 12300 N |
| Aangepaste tariefcode | 84822000 |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 1.229,49 excl. BTW
/ stuk
€ 1.487,68 incl. BTW
- Levering doorgaans binnen 9 dagen
