Kegellager Timken 6536V, Buitendiameter: 161.925 mm | Binnendiameter: 82.55 mm | Breedte: 53.978 mm
Kegellager
Zie technische informatieReferenties
Timken:6536V
Rubix:03324138
EAN:0053893148892
Technische samenvatting
| Binnendiameter | 82,55 mm |
|---|---|
| Buitendiameter | 161,925 mm |
| Breedte | 53,978 mm |

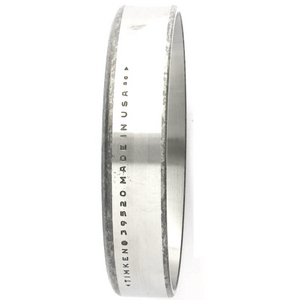

Productdetails : TIMKEN 6536V CUP
Single-row tapered roller bearings are the most basic and widely used, consisting of a cone assembly and a cup. Timken patented the first in 1898 and today offers the world's widest variety in inch and metric sizes. This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the inner race assembly and the outer race. It is typically mounted in opposing pairs on a shaft.
This cup (outer ring) will need to be purchased with a matching cone (inner ring/cage/rollers).
This cup (outer ring) will need to be purchased with a matching cone (inner ring/cage/rollers).
Timken 6536V cup (6500-serie) met boring 82,55 mm, OD 161,925 mm en breedte 53,978 mm. Static C0 = 523000 N, dynamic C1 = 439000 N.
Sterke punten
Single cone. One-piece pressed steel cage retains rollers on the cone and spaces them evenly. Pin type cages also available.
Toepassingen
Vehicle front wheels; Differential and pinion configurations; Conveyor rolls; Machine tool spindles; Trailer wheels
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 42,863x161,925x161,925 mm |
| Logistiek gewicht | 1562 g |
| Afmeting verpakking (D x B x H) | 49,53x160,782x160,782 mm |
| Binnendiameter | 82,55 mm |
| Buitendiameter | 161,925 mm |
| Breedte | 53,978 mm |
| Type lagerspeling | cn |
| Gewicht | 5,1 kg |
| Serie | 6500 series |
| Materiaal | vacuumgesmolten staal |
| Koker | staal |
| Totale breedte lager | 97,963 mm |
| Statische basisbelasting, radiaal - C0r | 523000 N |
| Dynamische basisbelasting, radiaal - Cr | 439000 N |
| Aangepaste tariefcode | 84822000 |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 1.172,74 excl. BTW
/ stuk
€ 1.419,02 incl. BTW
- Levering doorgaans binnen 9 dagen
