Kegellager Timken 67790-90071, Buitendiameter: 247.65 mm | Binnendiameter: 177.8 mm | Breedte: 16.67 mm
Kegellager
Zie technische informatieReferenties
Timken:67790-90071
Rubix:03324381
EAN:0053893370705
Technische samenvatting
| Binnendiameter | 177,8 mm |
|---|---|
| Buitendiameter | 247,65 mm |
| Breedte | 16,67 mm |

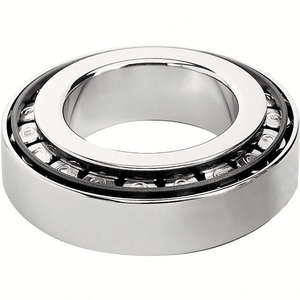

Productdetails : TIMKEN 67790-90071 KEGELLAGER ASSY
Timken’s high-precision tapered roller bearings consist of carefully matched components that offer an added degree of fine-tuning in the bearing setting and adjustment procedure to maximize customer machine productivity. Timken manufactures high-speed designs with a variable preload capability for optimum performance. Timken also manufactures Precision Plus bearings – having an overall radial runout less than a single micron.
Timken kegellager-assy 67790-90071 met precisieklasse C3 (ABEC 5 / Class 3). Bore 177,8 mm en hoge radiale lastwaarden voor zware industriële toepassingen.
Sterke punten
In particular, precision tapered roller bearings feature: Tighter manufacturing specifications resulting in greater rotational accuracy; Reduced tolerances on bore and outside diameter creating improved performance in high speed, high temperature applications; Straight race and/or roller profile designs (versus crowned profile designs) for increased accuracy and rigidity; Controlled machining and assembly processes to ensure that components are matched properly and exact specifications are met; High load-carrying capability compared to other bearing types so that fatigue life is enhanced; The ability to be adjusted during installation so that operating torque, shaft rigidity and operating temperature can be precisely controlled.
Toepassingen
Machine Tool; Printing Press; Rolling Mill
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 16,764x247,65x247,65 mm |
| Logistiek gewicht | 7208 g |
| Afmeting verpakking (D x B x H) | 50,8x279,4x279,4 mm |
| Binnendiameter | 177,8 mm |
| Buitendiameter | 247,65 mm |
| Breedte | 16,67 mm |
| Type lagerspeling | c3 |
| Gewicht | 7,2 kg |
| Serie | 67700 |
| Materiaal | staal |
| Koker | staal |
| Totale breedte lager | 16,67 mm |
| Statische basisbelasting, radiaal - C0r | 779000 N |
| Dynamische basisbelasting, radiaal - Cr | 405000 N |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 9.677,86 excl. BTW
/ stuk
€ 11.710,21 incl. BTW
- Levering doorgaans binnen 9 dagen
