Kegellager Timken 72188C-90050, Buitendiameter: 123.825 mm | Binnendiameter: 47.625 mm | Breedte: 55.563 mm
Kegellager
Zie technische informatieReferenties
Timken:72188C-90050
Rubix:03324624
EAN:0053893386041
Technische samenvatting
| Binnendiameter | 47,625 mm |
|---|---|
| Buitendiameter | 123,825 mm |
| Breedte | 55,563 mm |

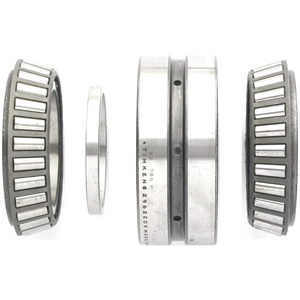

Productdetails : TIMKEN 72188 C-90050 KEGELLAGER ASSY
The configuration of the TDO provides a wide effective bearing spread, making it ideal for applications in which overturning moments are a significant load component. TDO bearings can be used in fixed positions or allowed to float in the housing bore.
Timken 72188 c-90050 kegellager assy
Sterke punten
Double cup and two single cones, with or without a spacer. When spacers are used, bearing is furnished as a preset, matched assembly. Cup features groove and lubrication holes in the OD. Spacers available with or without lubricant grooves and holes.
Toepassingen
Heavy-duty gear drives; Various industrial configurations
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistiek gewicht | 4560 g |
| Binnendiameter | 47,625 mm |
| Buitendiameter | 123,825 mm |
| Breedte | 55,563 mm |
| Type lagerspeling | cn |
| Serie | 72000c |
| Koker | staal |
| Totale breedte lager | 77,785 mm |
| Norm | ISO 281:2007 |
| Statische basisbelasting, radiaal - C0r | 208000 N |
| Dynamische basisbelasting, radiaal - Cr | 55500 N |
| 123,825 mm | |
| 123,825 mm | |
| 127 mm | |
| 127 mm |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 1.028,93 excl. BTW
/ stuk
€ 1.245,01 incl. BTW
- Levering doorgaans binnen 9 dagen
