Kegellager Timken 782-90166, Buitendiameter: 180.975 mm | Binnendiameter: 104.775 mm | Breedte: 104.775 mm
Kegellager
Zie technische informatieReferenties
Timken:782-90166
Rubix:03324867
EAN:0053893089898
Technische samenvatting
| Binnendiameter | 104,775 mm |
|---|---|
| Buitendiameter | 180,975 mm |
| Breedte | 104,775 mm |

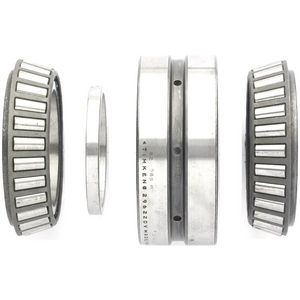

Productdetails : TIMKEN 782-90166 KEGELLAGER ASSY
The configuration of the TDO provides a wide effective bearing spread, making it ideal for applications in which overturning moments are a significant load component. TDO bearings can be used in fixed positions or allowed to float in the housing bore.
Timken 782-90166 TDO dubbelrijig kegelrollager met boring 104,775 mm, buitendiameter 180,975 mm en breedte 104,775 mm. Ontworpen voor hoge belastingen en langere levensduur.
Sterke punten
Double cup and two single cones, with or without a spacer. When spacers are used, bearing is furnished as a preset, matched assembly. Cup features groove and lubrication holes in the OD. Spacers available with or without lubricant grooves and holes.
Toepassingen
Heavy-duty gear drives; Various industrial configurations
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 104,902x181,102x181,102 mm |
| Logistiek gewicht | 10305 g |
| Afmeting verpakking (D x B x H) | 184,15x107,95x184,15 mm |
| Binnendiameter | 104,775 mm |
| Buitendiameter | 180,975 mm |
| Breedte | 104,775 mm |
| Type lagerspeling | cn |
| Gewicht | 10,031 kg |
| Serie | 775 |
| Totale breedte lager | 85,725 mm |
| Statische basisbelasting, radiaal - C0r | 495000 N |
| Dynamische basisbelasting, radiaal - Cr | 603000 N |
| Aangepaste tariefcode | 84822000 |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 1.614,71 excl. BTW
/ stuk
€ 1.953,80 incl. BTW
- Levering doorgaans binnen 9 dagen
