Kegellager Timken 94706D, Buitendiameter: 195.1 mm | Binnendiameter: 177.8 mm | Breedte: 123.825 mm
Kegellager
Zie technische informatieReferenties
Timken:94706D
Rubix:03325599
EAN:0053893449074
Technische samenvatting
| Binnendiameter | 177,8 mm |
|---|---|
| Buitendiameter | 195,1 mm |
| Breedte | 123,825 mm |

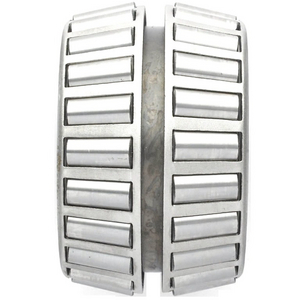

Productdetails : TIMKEN 94706 D CONE
TDI bearings have a one-piece double inner race and two single outer races and are typically supplied complete with an outer race spacer as a pre-set assembly. The bearing can be used at fixed positions on rotation shaft applications. For rotating housing application it can be used to float on the stationary shaft.
TDI bearings are sometimes used on rotating shaft applications where a loose fit is required for ease of removal.
TDI bearings are sometimes used on rotating shaft applications where a loose fit is required for ease of removal.
Timken 94706D kegel-/rollenlagerconus uit serie 94000 (TDI). Boring 177,8 mm en breedte 123,8 mm met hoge radiale belastingscapaciteit (C0 1.07e6 N, C1 1.15e6 N).
Sterke punten
Double cone and two single cups, with or without a cup spacer. Furnished as a matched assembly. Cups ground to fit
Toepassingen
Gear reduction units; Calendar rolls; Industrial machinery
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 123,825x232,41x232,41 mm |
| Logistiek gewicht | 19441 g |
| Afmeting verpakking (D x B x H) | 292,1x152,4x292,1 mm |
| Binnendiameter | 177,8 mm |
| Buitendiameter | 195,1 mm |
| Breedte | 123,825 mm |
| Type lagerspeling | cn |
| Gewicht | 30,1 kg |
| Serie | 94000 |
| Koker | staal |
| Totale breedte lager | 123,825 mm |
| Statische basisbelasting, radiaal - C0r | 1070000 N |
| Dynamische basisbelasting, radiaal - Cr | 1150000 N |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 11.632,47 excl. BTW
/ stuk
€ 14.075,29 incl. BTW
- Levering doorgaans binnen 9 dagen
