Kegellager Timken HM231115, Buitendiameter: 241.3 mm | Binnendiameter: 112.446 mm | Breedte: 44.45 mm
Kegellager
Zie technische informatieReferenties
Timken:HM231115
Rubix:03326793
Fabrikant:100189465
EAN:0053893523644
Technische samenvatting
| Binnendiameter | 112,446 mm |
|---|---|
| Buitendiameter | 241,3 mm |
| Breedte | 44,45 mm |

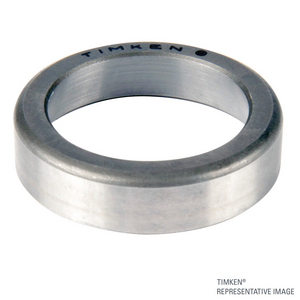

Productdetails : TIMKEN HM 231115 CUP
Single-row tapered roller bearings are the most basic and widely used, consisting of a cone assembly and a cup. Timken patented the first in 1898 and today offers the world's widest variety in inch and metric sizes. This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the inner race assembly and the outer race. It is typically mounted in opposing pairs on a shaft.
This cup (outer ring) will need to be purchased with a matching cone (inner ring/cage/rollers).
This cup (outer ring) will need to be purchased with a matching cone (inner ring/cage/rollers).
Timken HM231115 lagerkom (single cup) van conisch rollager type TS, serie HM231100. Ø241,3 mm, breedte 44,45 mm, 9,6 kg; chroomstaal, ongecoat.
Sterke punten
Single cone. One-piece pressed steel cage retains rollers on the cone and spaces them evenly. Pin type cages also available.
Toepassingen
Vehicle front wheels; Differential and pinion configurations; Conveyor rolls; Machine tool spindles; Trailer wheels
Technische informatie
Attributen
| Verpakkingshoeveelheid | 1 |
|---|---|
| Logistieke afmetingen (D x B x H) | 44,45x241,3x241,3 mm |
| Logistiek gewicht | 3200 g |
| Afmeting verpakking (D x B x H) | 269,9512x269,9512x52,4256 mm |
| Gewicht verpakking | 3200,1 g |
| Binnendiameter | 112,446 mm |
| Buitendiameter | 241,3 mm |
| Breedte | 44,45 mm |
| Type lagerspeling | cn |
| Gewicht | 9,6 kg |
| Serie | hm231100 |
| Materiaal | chrome steel (uncoated) |
| Koker | staal |
| Totale breedte lager | 57,15 mm |
| Norm | IMPERIAL |
| Statische basisbelasting, radiaal - C0r | 932000 N |
| Dynamische basisbelasting, radiaal - Cr | 155000 N |
| Aangepaste tariefcode | 84822000 |
Laten zien UNSPSC / ECL@SS / HS-codes
€ 1.402,55 excl. BTW
/ stuk
€ 1.697,09 incl. BTW
- Levering doorgaans binnen 9 dagen
